HP ProBook 450 G4 DA0X83MB6H0 REV H Discrete To UMA Conversion

How to Conversion Laptop Motherboard Discrete to UMA
Post Reply
User avatar
admin
Site Admin
Posts: 210
Joined: Fri May 04, 2018 3:07 am

HP ProBook 450 G4 DA0X83MB6H0 REV H Discrete To UMA Conversion, HP ProBook 450 G4 Display Problem Solution

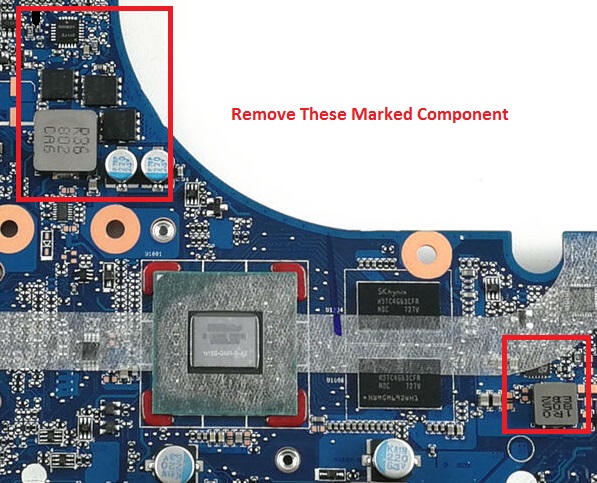

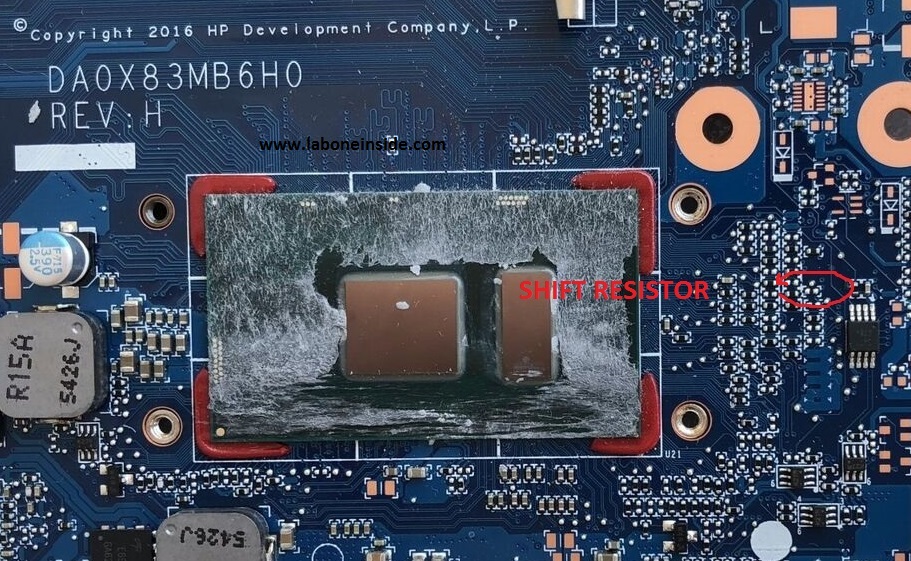

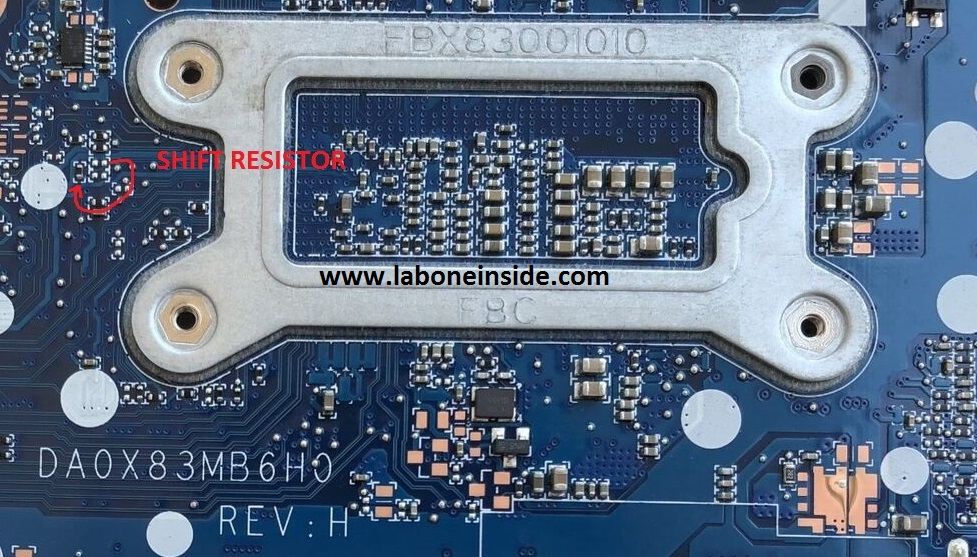

Remove 2 GPU Coils And 2 Ic. Then Move 2 Resistors. The work is done. Tested By Labone
Attachments


Top
User avatar
ibrahim
Posts: 13
Joined: Thu Mar 07, 2019 3:04 am

Admin wrote:
> HP ProBook 450 G4 DA0X83MB6H0 REV H Discrete To UMA Conversion, HP ProBook
> 450 G4 Display Problem Solution
>
> Remove 2 GPU Coils And 2 Ic. Then Move 2 Resistors. The work is done.
> Tested By Labone



thank you for sharing
